FR4/FR5 Epoxy Glass Fiber Sheets

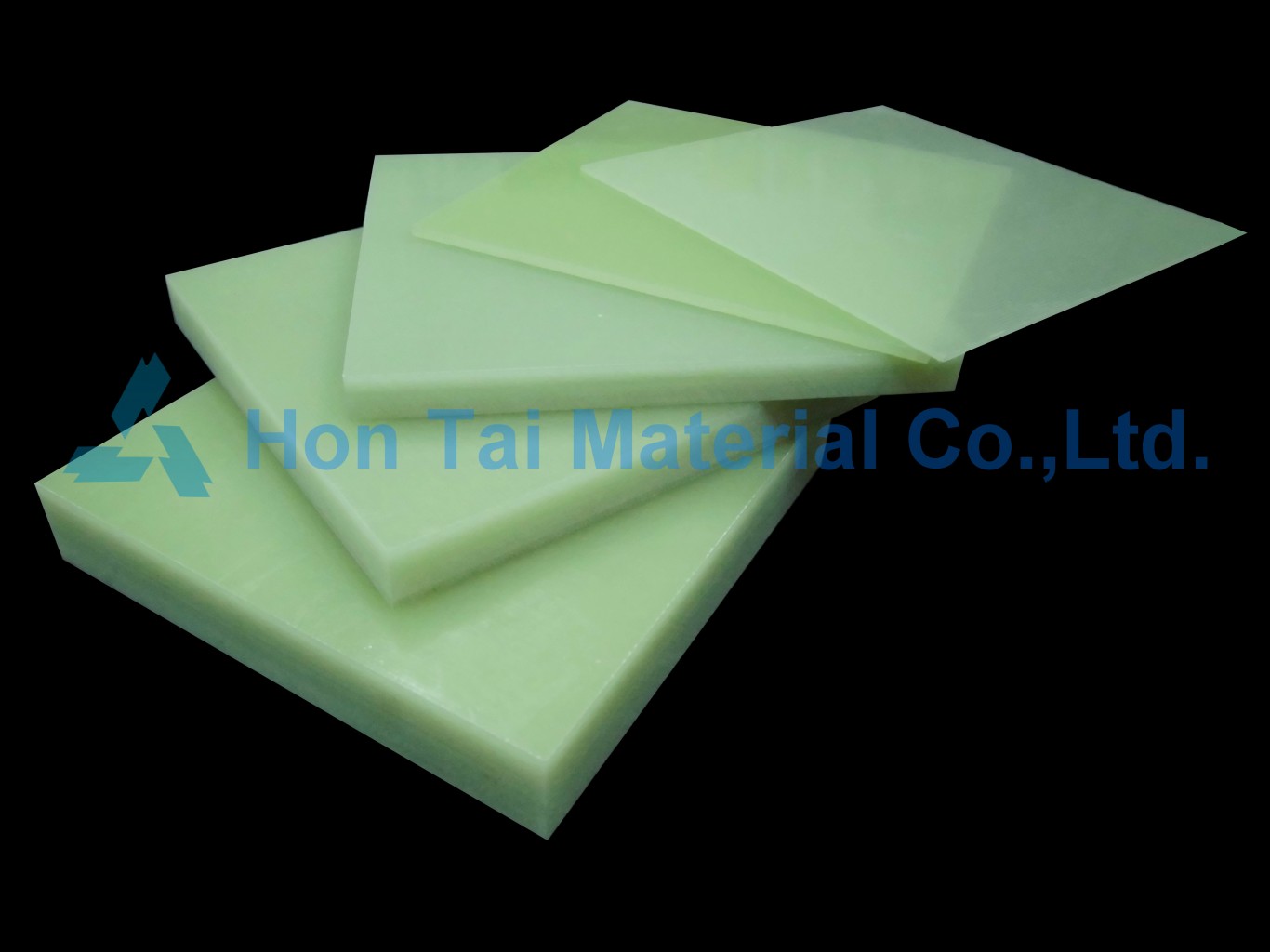

Epoxy Glass Fiber Sheets-FR4

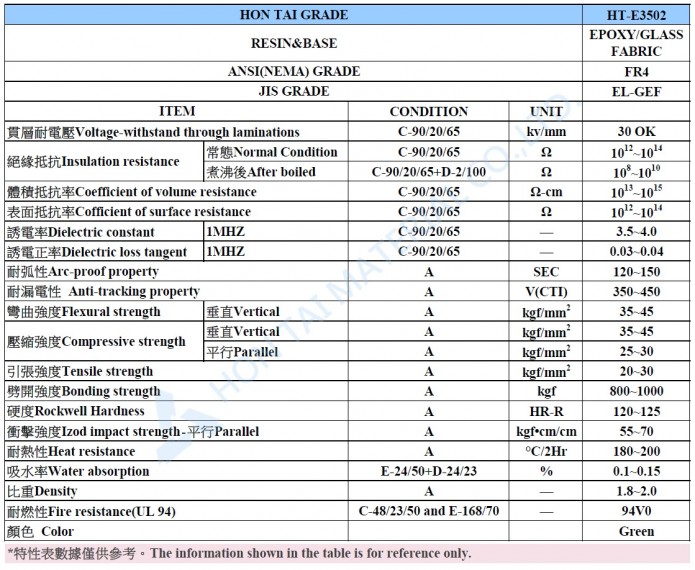

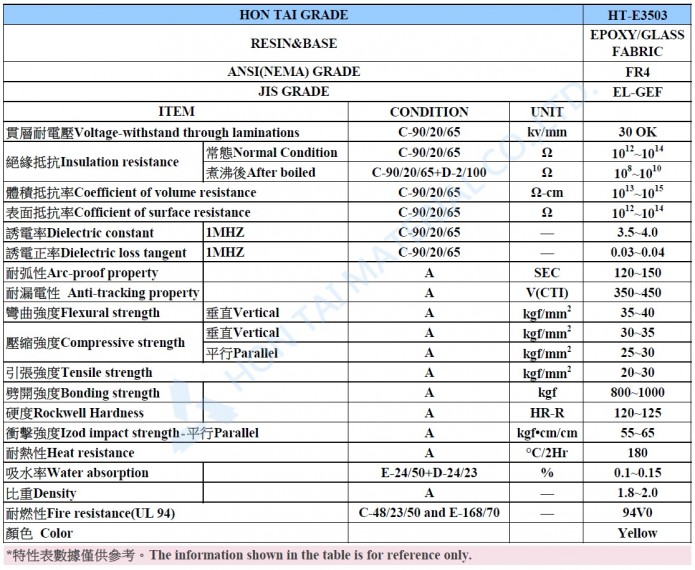

Model number:HT-E3502/HT-E3503

Thickness:0.2-100mm

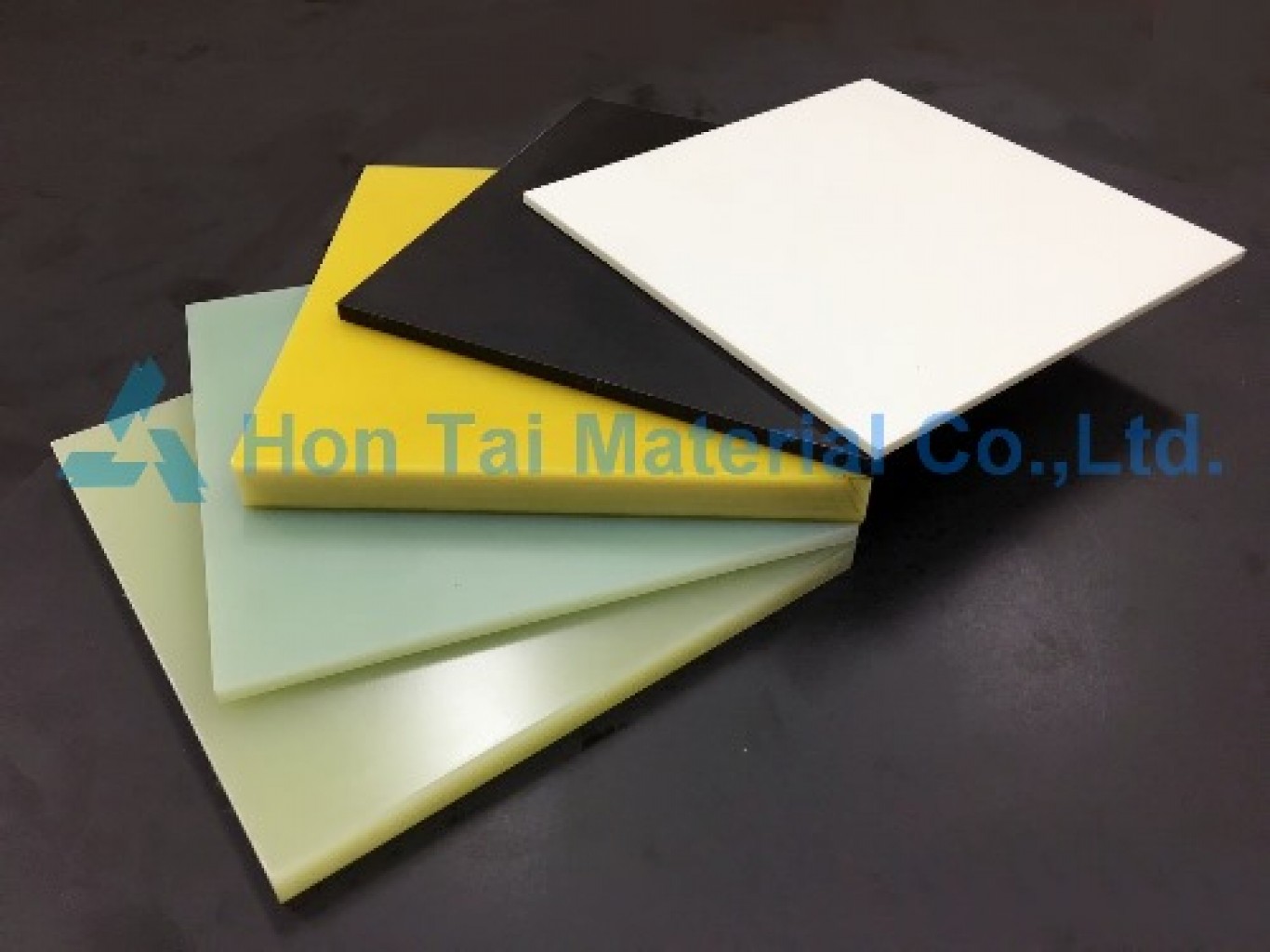

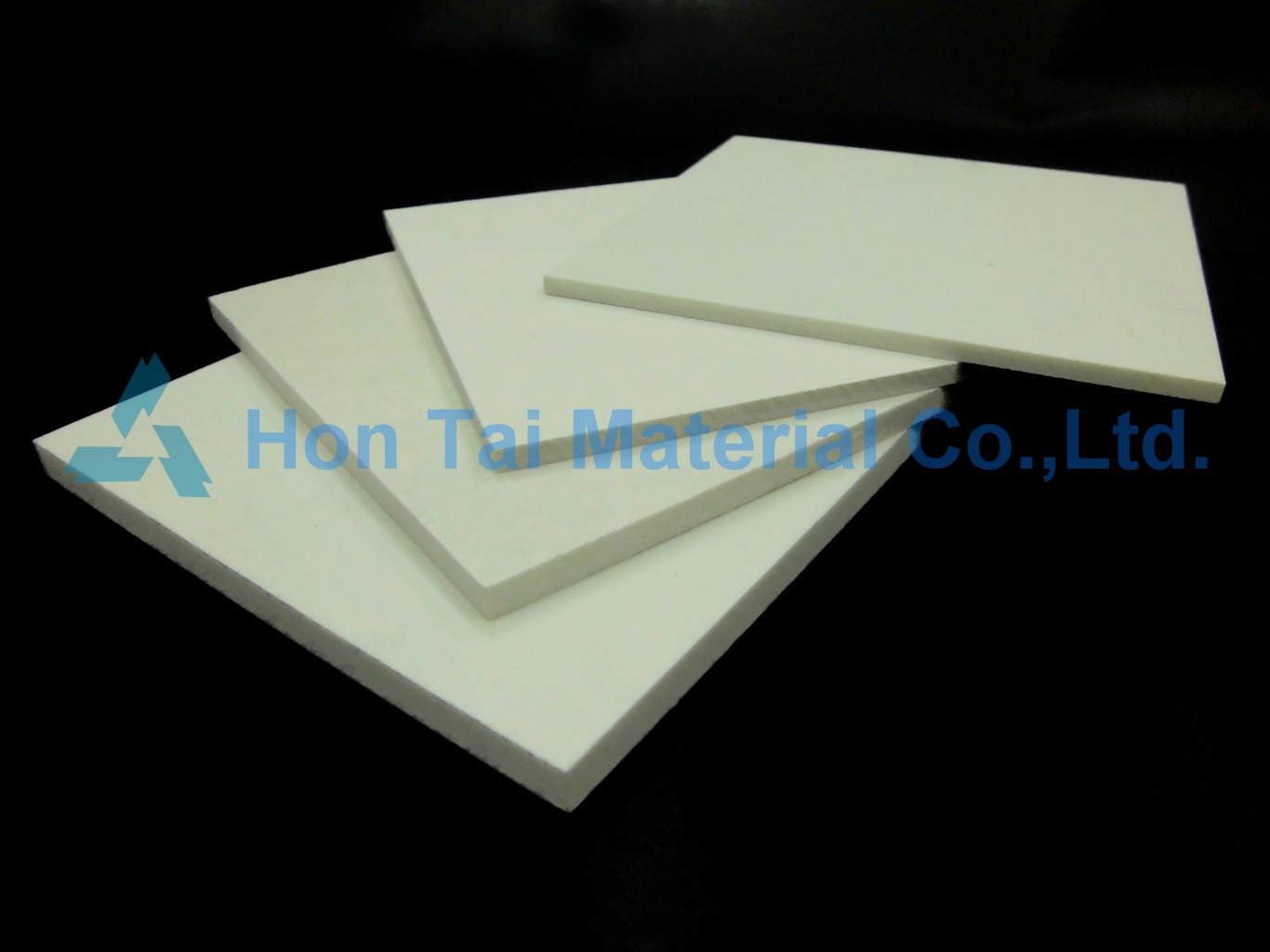

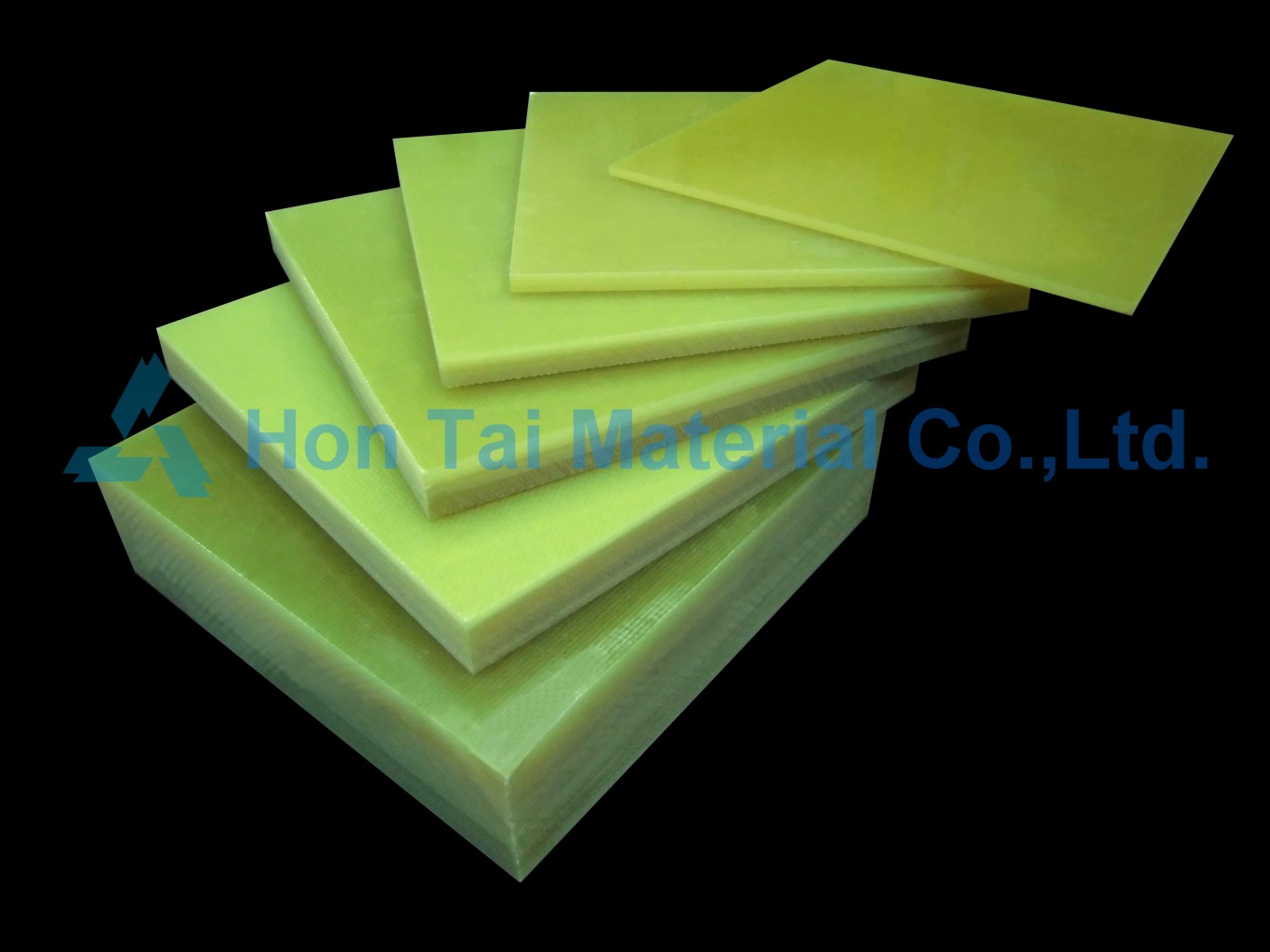

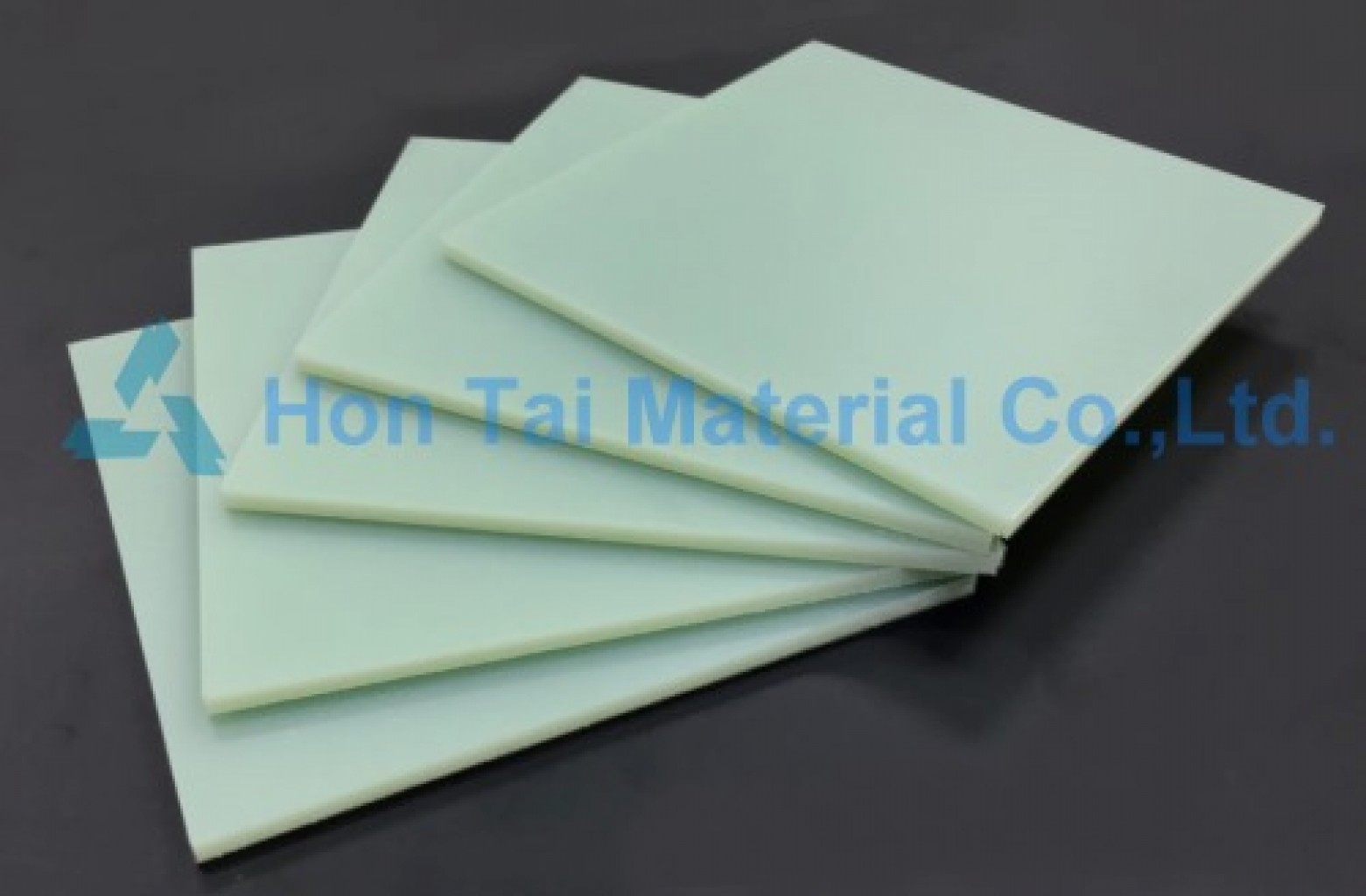

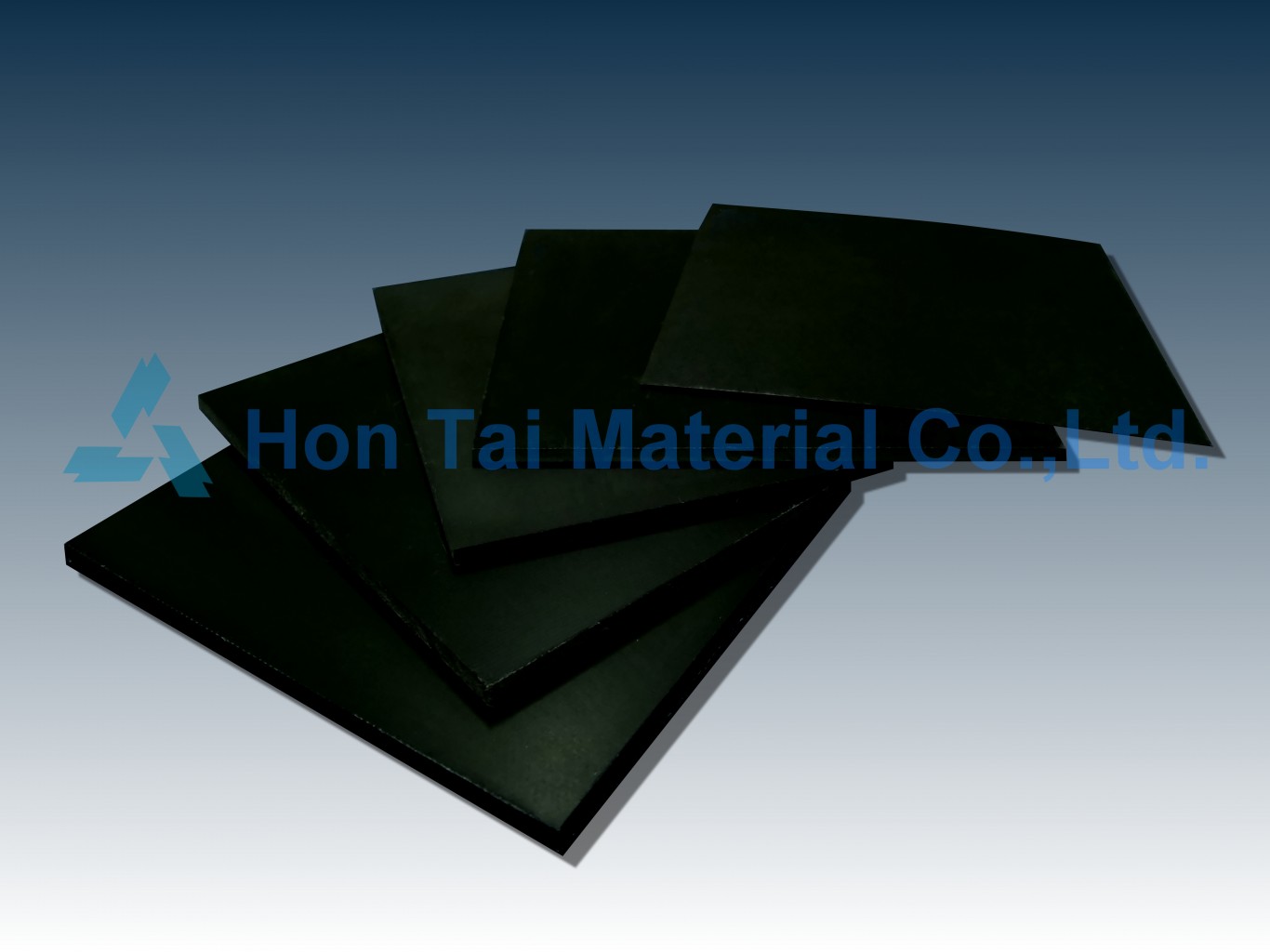

Color: Natural color/Green/Yellow/Black/ Milky white

Standard size:1020*1220mm

Resin: Epoxy

Reinforcement: Electronic grade woven fiberglass cloth

Flame classification:(UL94)94V0

UL/ANSI:FR4

JIS:EL-GEF

Characteristic:

  1. low water absorption
  2. good electrical insulating property
  3. good strength
  4. good weatherability

Application: electrical and mechanical components/ PCB drilling or routing
